Multicore Roxtone MSL422CL0030
- Premade balanced 4-channel multilink connecting cable with ROXTONE connectors: 2 x XLR 3-pole male + 2 x XLR 3-pole female – 2 x XLR 3-pole male + 2 x XLR 3-pole female.

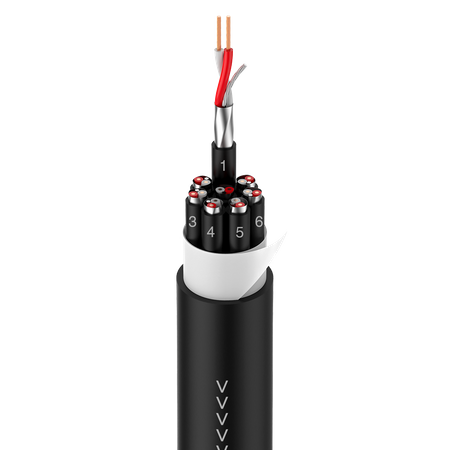

Cable:
- Each pair is individually insulated with black and number-printed PVC jacket
- Excellent to work with due to the use of a special AL/PT-foil
- Flexible due to the special wire construction

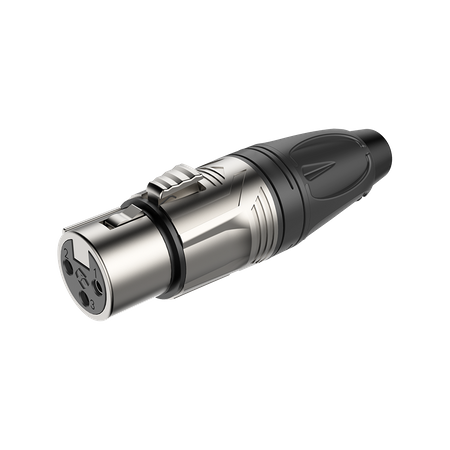

Connectors:
- Good shielding due to the overall and individual wire pair shielding
- Ergonomic heavy duty design with Zinc alloy shell and PA 30% GR bushing
- Without locking “window” makes the housing more strength
- Special contacts pin with gear and fluting design to avoid moving
- ROXTONE brand engraved on the shell
- Patent protected
Zum Herunterladen
Sicherheit und Produktressourcen
Marke
Für dieses Produkt zuständige Stelle in der EU
Kera Audio Arkadiusz TrochymiakMehr lesen
HerstellerNingbo Roxtone Audio Technology Co.,LtdAdresse:
Tai'an Middle Road 188/Room1002Postleitzahl: 315199Stadt: NingboLand: ChinyRufnummer: +86 574 87154705E-Mail Adresse: info@roxtone.com
Zuständige StelleKera Audio Arkadiusz TrochymiakAdresse:
Kieleńska 9Postleitzahl: 84-208Stadt: KłosowoLand: PolskaRufnummer: 0048 58 526 14 65E-Mail Adresse: biuro@kera-audio.pl
Symbol
MSL422CL0030
Hersteller-Code
6975165355637
Serie
Technische Daten
Typ
Kabel
Multicore-Kabel
Stecker 1-A
2 x 3-poliger XLR-Stecker RX3M-NT
Stecker 1-B
2 x 3-polige XLR-Buchse RX3F-NT
Stecker 2-A
2 x 3-poliger XLR-Stecker RX3M-NT
Stecker 2-B
2 x 3-polige XLR-Buchse RX3F-NT
Capac. cond./Sekunde. pro 1 m
65 pF
Capac. cond./Schild. pro 1 m
130 pF
Cond. widerstand pro 1 km
125 Ω
Schild. widerstand pro 1 km
110 Ω
Isolationswiderstand. pro 1 km
> 1 GΩ
Temperaturbereich [°C]
-20 - +70
Physikalische Daten
Kabellänge [m]
3
Farbe
Schwarz
Äußeres Isoliermaterial
PVC
Außendurchmesser Kabel [mm]
9.5
AWG
26
Nein. von Innenleitern [mm²]
8 x 2 x 0.14
Kupferlitze pro Leiter [mm]
18 x 0.10
Material des Leiters
Kupfer verzinnt
Schild
PE 1,1 mm
AL/PT-Folie + Drahtseil 7 x 0,18 mm verzinntes Kupfer
Abschirmfaktor
100%
Material der Abschirmung
Kupfer
Mehrfachpackung
20
Allgemeine Angaben
Garantiedauer
24 Monate
Land
China
Vom Hersteller abgekündigt
KEINE
Sicherheit - Warntyp
Nicht geeignet für Kinder unter 5 Jahren
